Product Parameters

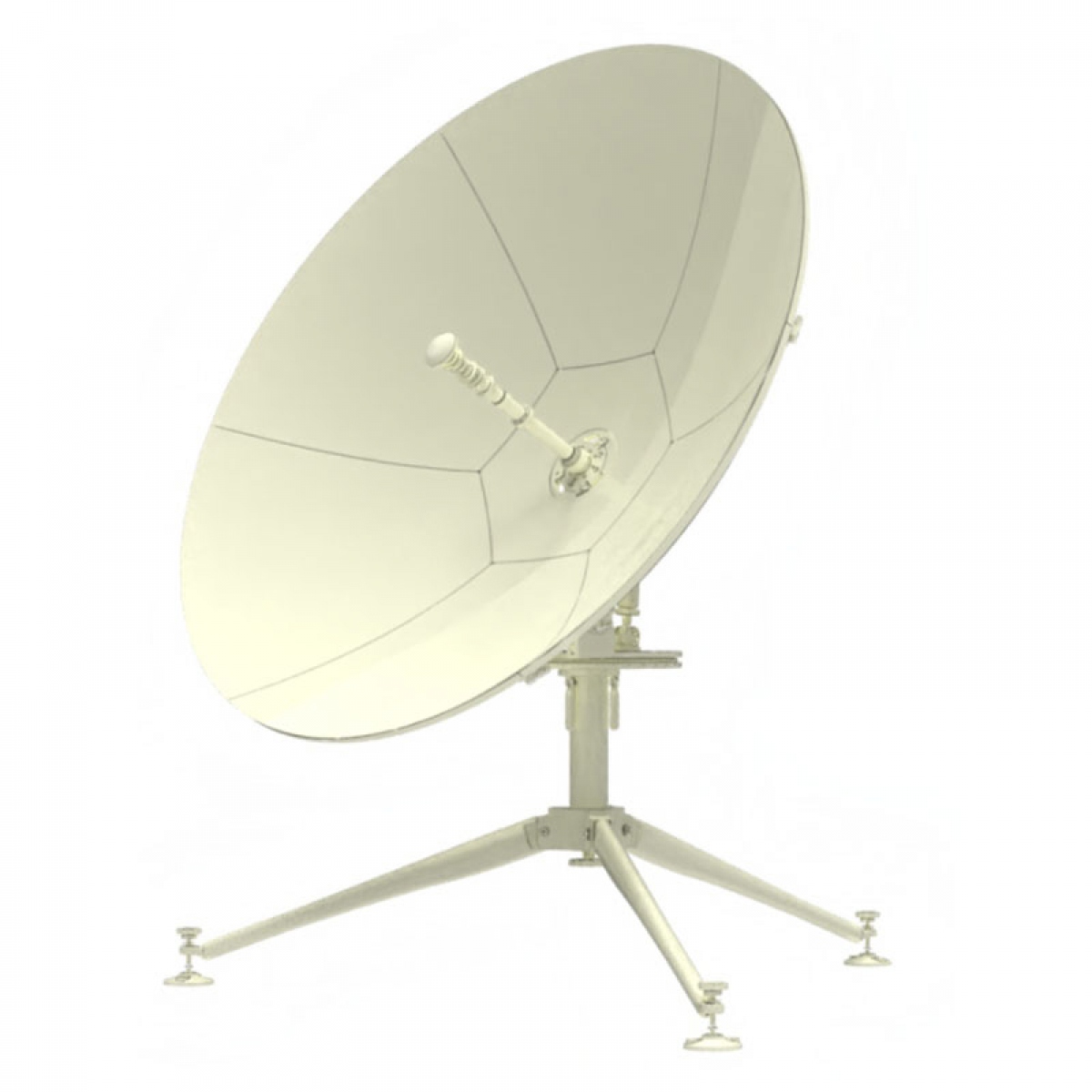

Antenna CategoryManual FlyawayAntenna Aperture 1.2mAntenna Type Feed backPolarizationLinearFrequency (Rx) 10.95-12.75GHzFrequency (Tx) 13.75-14.50GHzPort isolation (Rx-Tx)≥ 85 dBPort isolation (Tx-Rx) ≥ 40 dBGain(Rx)≥41.15+20lg(f/12.25)dBiGain(Tx)≥42.46+20lg(f/14.25)dBiVSWR(Rx)≤1.35:1VSWR(Tx) ≤1.35:1Motion range (AZ) ±180°Motion range (EL) 0°~90°Motion range (POL) ±90°AZELPOLInitial acquisition time≤3minBlockage recovery time≤1minPower capacity≤500WOperating Temperature-40°C ~ +60 °CStorage Temperature-55°C ~ +70 °CHumidity Requirement95%(20°C)Operating wind velocity13m/sSurvival wind velocity20m/sProtection grade/IP RatingIP65Power supply90~264VAC,47Hz~63Hzpower consumption≤350W(No power amplifier)MaterialCarbon FiberRemarksOptional Feed꞉ L/S
