Product Parameters

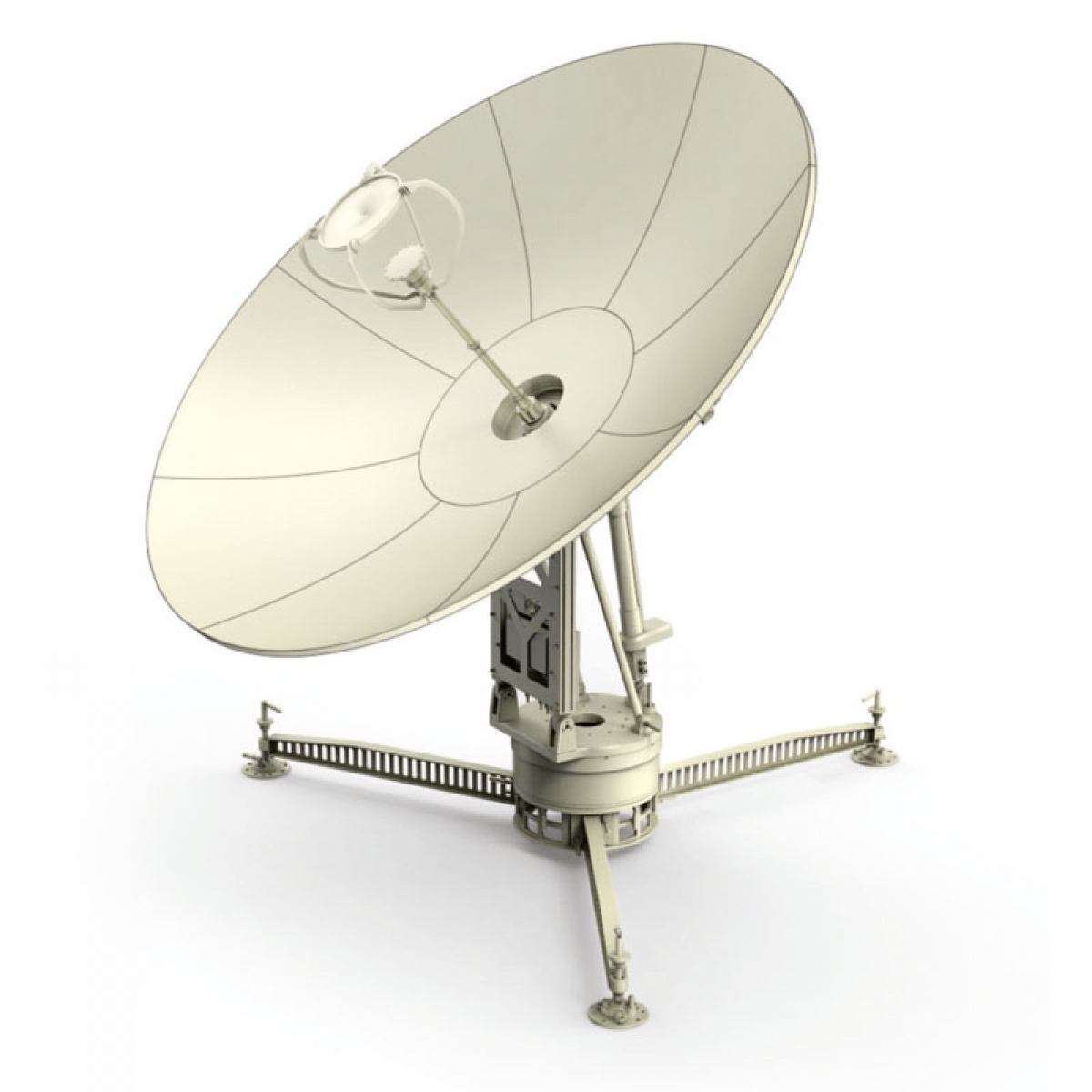

Antenna CategoryManual TransportableAntenna Aperture 2.4mAntenna Type Feed backPolarizationCircularFrequency (Rx) 17.70-21.20GHzFrequency (Tx) 29.00-31.00GHzPort isolation (Rx-Tx)≥ 85 dBPort isolation (Tx-Rx) ≥ 40 dBGain(Rx)≥51.43+20lg(f/20.00)dBiGain(Tx)≥54.95+20lg(f/30.00)dBiVSWR(Rx)≤1.35:1VSWR(Tx) ≤1.35:1Motion range (AZ) 0°~360°Motion range (EL) 10°~90°Motion range (POL) ±90°AZELPOLInitial acquisition time≤3minBlockage recovery time≤1minPower capacity≤500WOperating Temperature-40°C ~ +60 °CStorage Temperature-55°C ~ +70 °CHumidity Requirement95%(20°C)Operating wind velocity13m/sSurvival wind velocity20m/sProtection grade/IP RatingIP65Power supply90~264VAC,47Hz~63Hzpower consumption≤350W(No power amplifier)MaterialCarbon FiberRemarksOptional Feed꞉ L / S / X / ka; 1.00GHz～18.00GHz，18.00GHz～40.00GHz
