Product Parameters

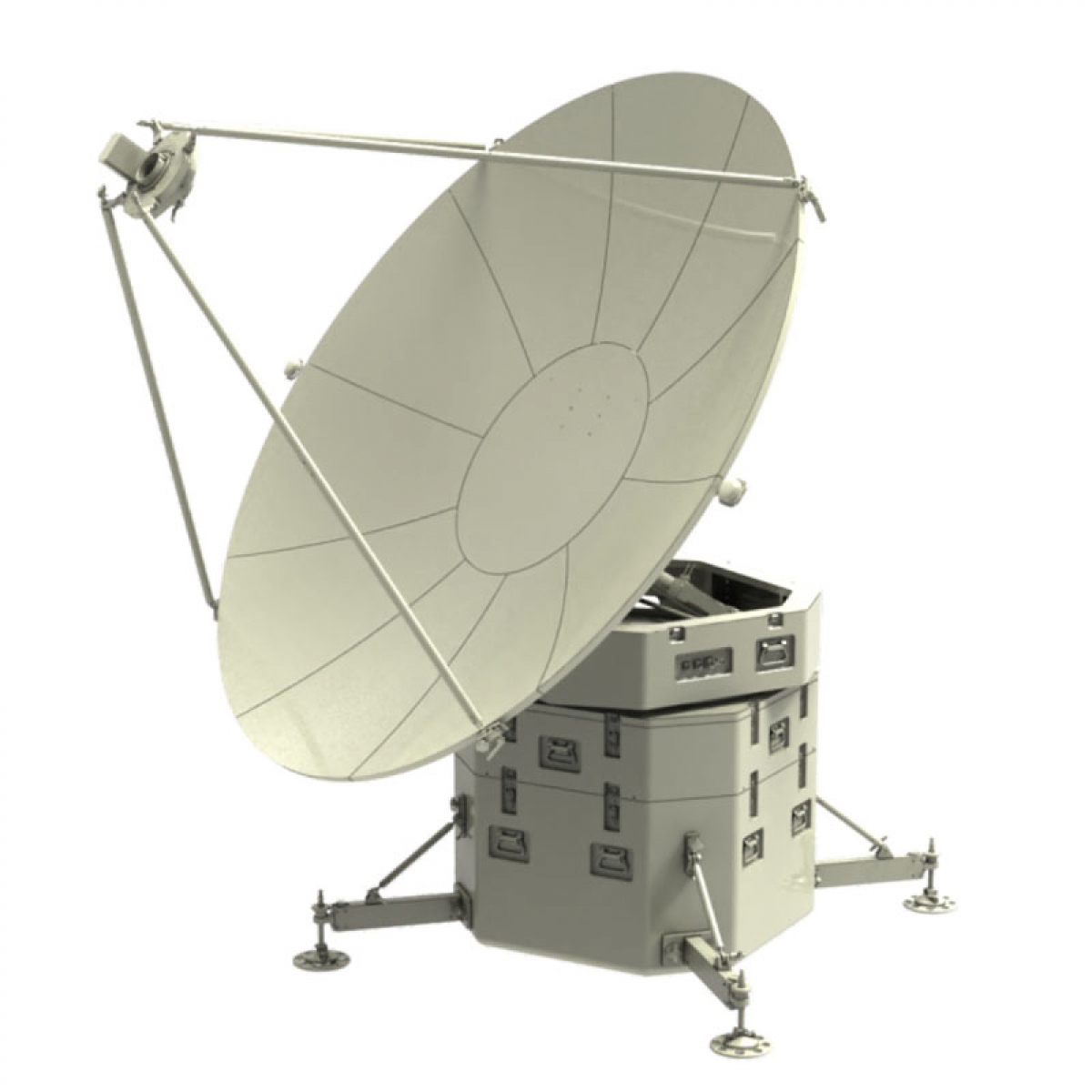

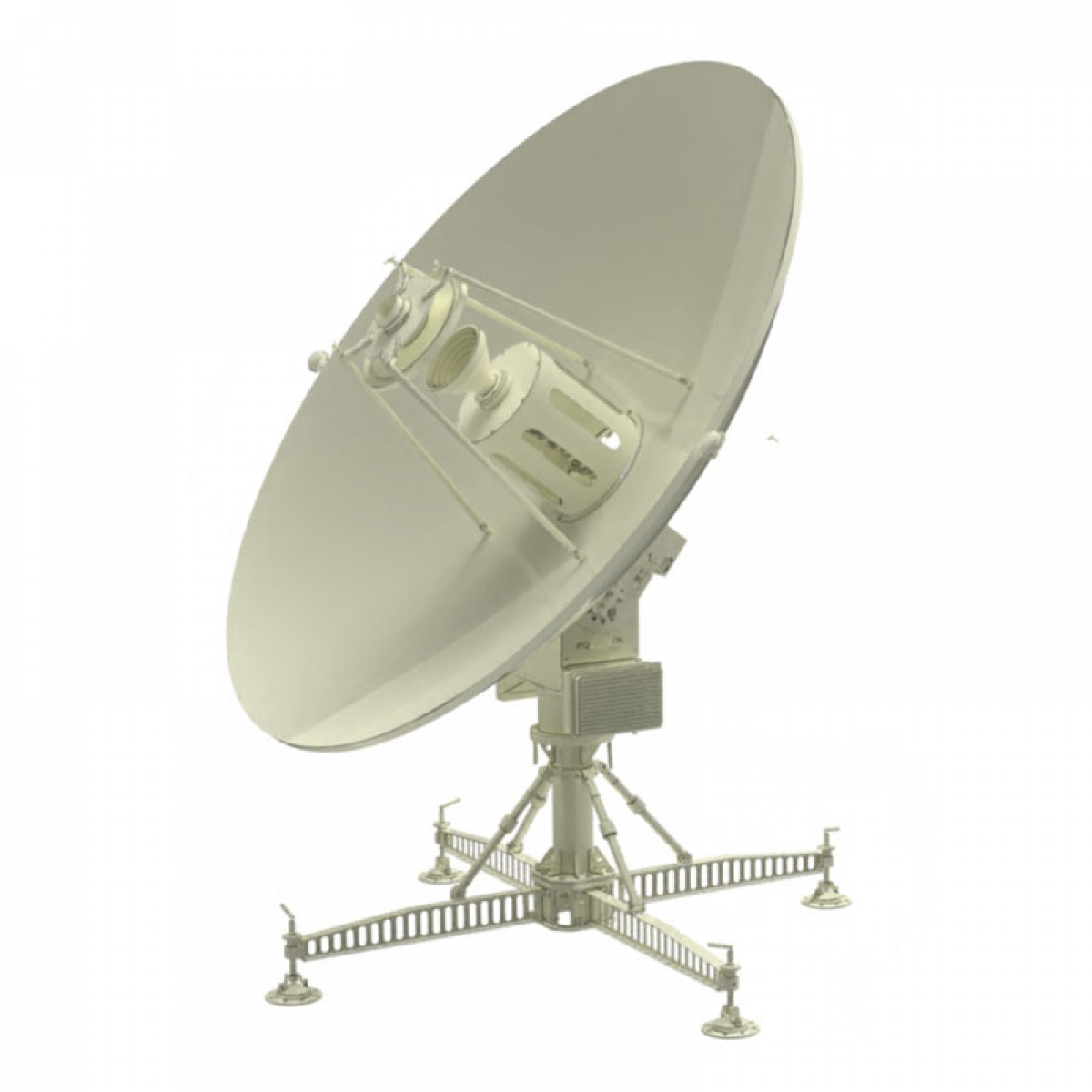

Antenna CategoryAutomatic TransportableAntenna Aperture 2.4mAntenna Type Tripod type -feed back; box type -feed forward.PolarizationLinearFrequency (Rx) 10.70-12.75GHzFrequency (Tx) 13.75-14.50GHzPort isolation (Rx-Tx)≥ 85 dBPort isolation (Tx-Rx) ≥ 40 dBGain(Rx)≥47.17+20lg(f/12.25)dBiGain(Tx)≥48.48+20lg(f/14.25)dBiVSWR(Rx)≤1.5:1VSWR(Tx) ≤1.5:1Motion range (AZ) ±180°Motion range (EL) 10°~90°Motion range (POL) ±90°AZ0.1~3°/sEL0.1~1°/sPOLInitial acquisition time≤3minBlockage recovery time≤1minPower capacity≤500WOperating Temperature-40°C ~ +60 °CStorage Temperature-55°C ~ +70 °CHumidity Requirement95%(20°C)Operating wind velocity13m/sSurvival wind velocity20m/sProtection grade/IP RatingIP65Power supply90~264VAC,47Hz~63Hzpower consumption≤350W(No power amplifier)MaterialCarbon FiberRemarksOptional Feed꞉L/Setc. ,Optional box-type or tripod-type design
