Product Parameters

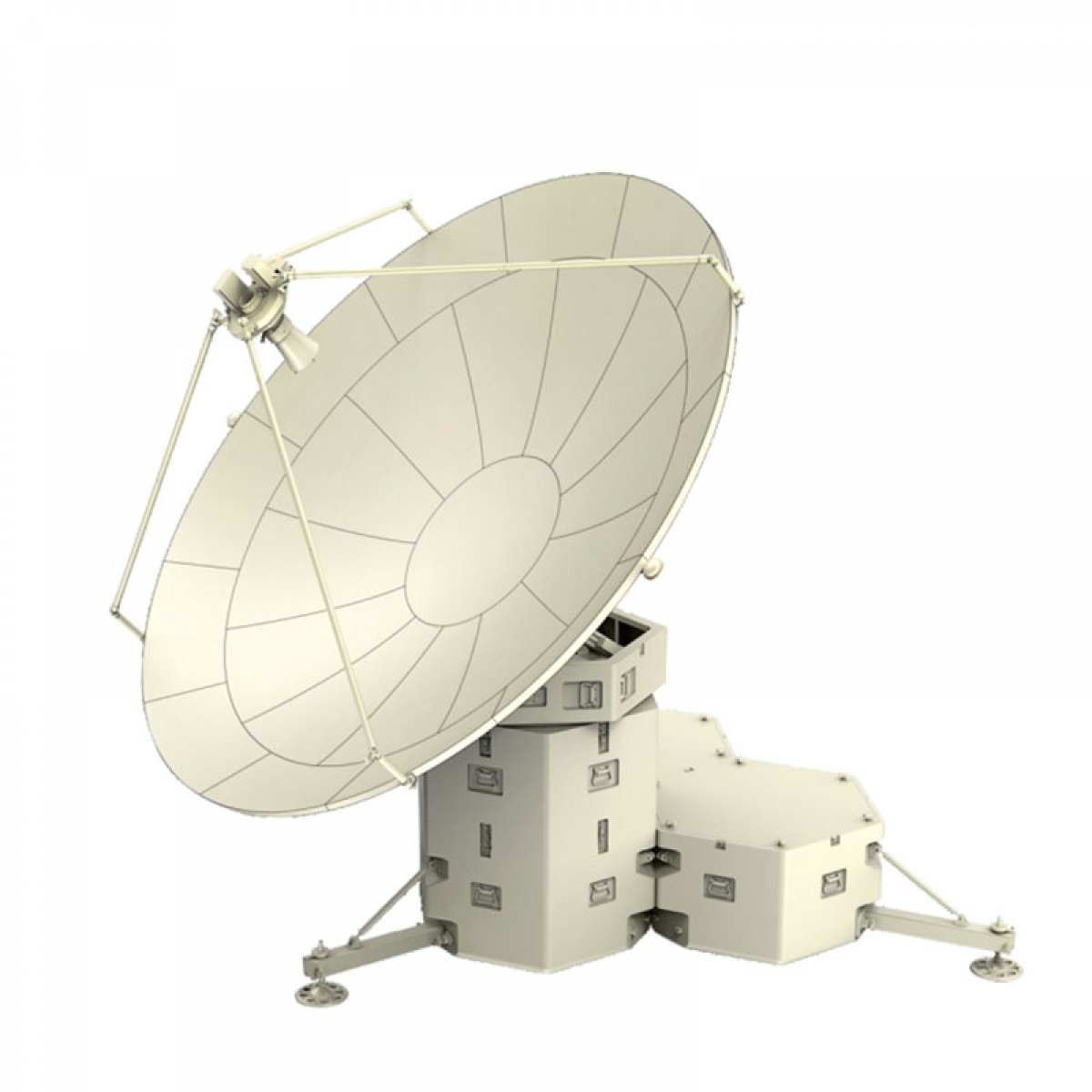

Antenna CategoryAutomatic TransportableAntenna Aperture 3.0mAntenna Type Feed ForwardPolarizationCircularFrequency (Rx) 17.70-21.20GHzFrequency (Tx) 29.00-31.00GHzPort isolation (Rx-Tx)≥ 85 dBPort isolation (Tx-Rx) ≥ 40 dBGain(Rx)≥53.37+20lg(f/20.00)dBiGain(Tx)≥56.89+20lg(f/30.00)dBiVSWR(Rx)≤1.5:1VSWR(Tx) ≤1.5:1Motion range (AZ) ±180°Motion range (EL) 10°~90°Motion range (POL) ±90°AZ0.1~3°/sEL0.1~1°/sPOLInitial acquisition time≤3minBlockage recovery time≤1minPower capacity≤500WOperating Temperature-40°C ~ +60 °CStorage Temperature-55°C ~ +70 °CHumidity Requirement95%(20°C)Operating wind velocity13m/sSurvival wind velocity20m/sProtection grade/IP RatingIP65Power supply90~264VAC,47Hz~63Hzpower consumption≤350W(No power amplifier)MaterialCarbon FiberRemarksOptional Feed꞉ L / S; 1.00GHz-18.00GHz;18.00GHz-40.00GHz
