Product Parameters

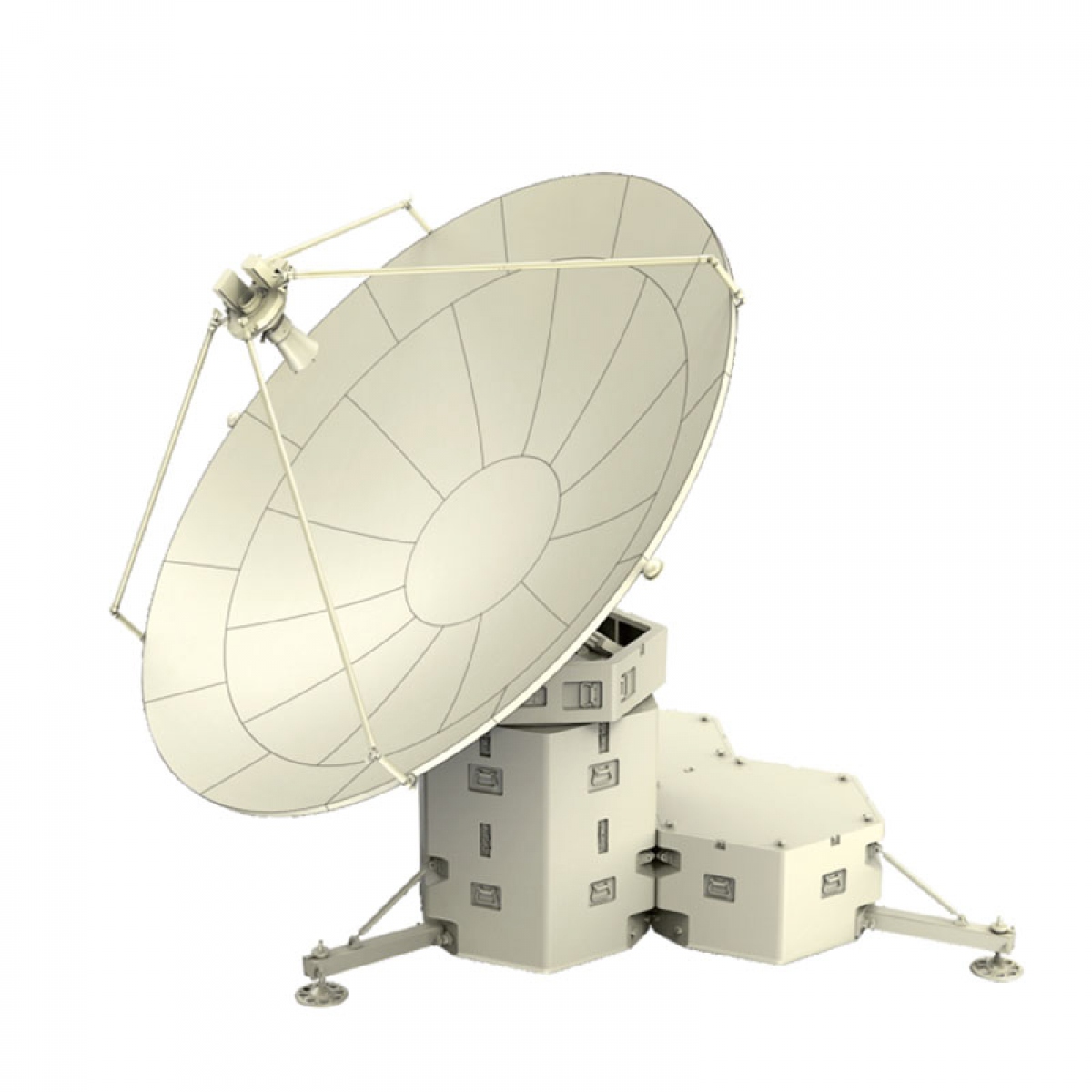

Antenna CategoryAutomatic TransportableAntenna Aperture 3.0mAntenna Type Feed ForwardPolarizationCircularFrequency (Rx) 7.25-7.75GHzFrequency (Tx) 7.90-8.40GHzPort isolation (Rx-Tx)≥ 85 dBPort isolation (Tx-Rx) ≥ 40 dBGain(Rx)≥44.85+20lg(f/7.50)dBiGain(Tx)≥45.57+20lg(f/8.15)dBiVSWR(Rx)≤1.5:1VSWR(Tx) ≤1.5:1Motion range (AZ) ±180°Motion range (EL) 10°~90°Motion range (POL) ±90°AZ0.1~3°/sEL0.1~1°/sPOLInitial acquisition time≤3minBlockage recovery time≤1minPower capacity≤500WOperating Temperature-40°C ~ +60 °CStorage Temperature-55°C ~ +70 °CHumidity Requirement95%(20°C)Operating wind velocity13m/sSurvival wind velocity20m/sProtection grade/IP RatingIP65Power supply90~264VAC,47Hz~63Hzpower consumption≤350W(No power amplifier)MaterialCarbon FiberRemarksOptional Feed꞉ L / S; 1.00GHz-18.00GHz;18.00GHz-40.00GHz
