Product Parameters

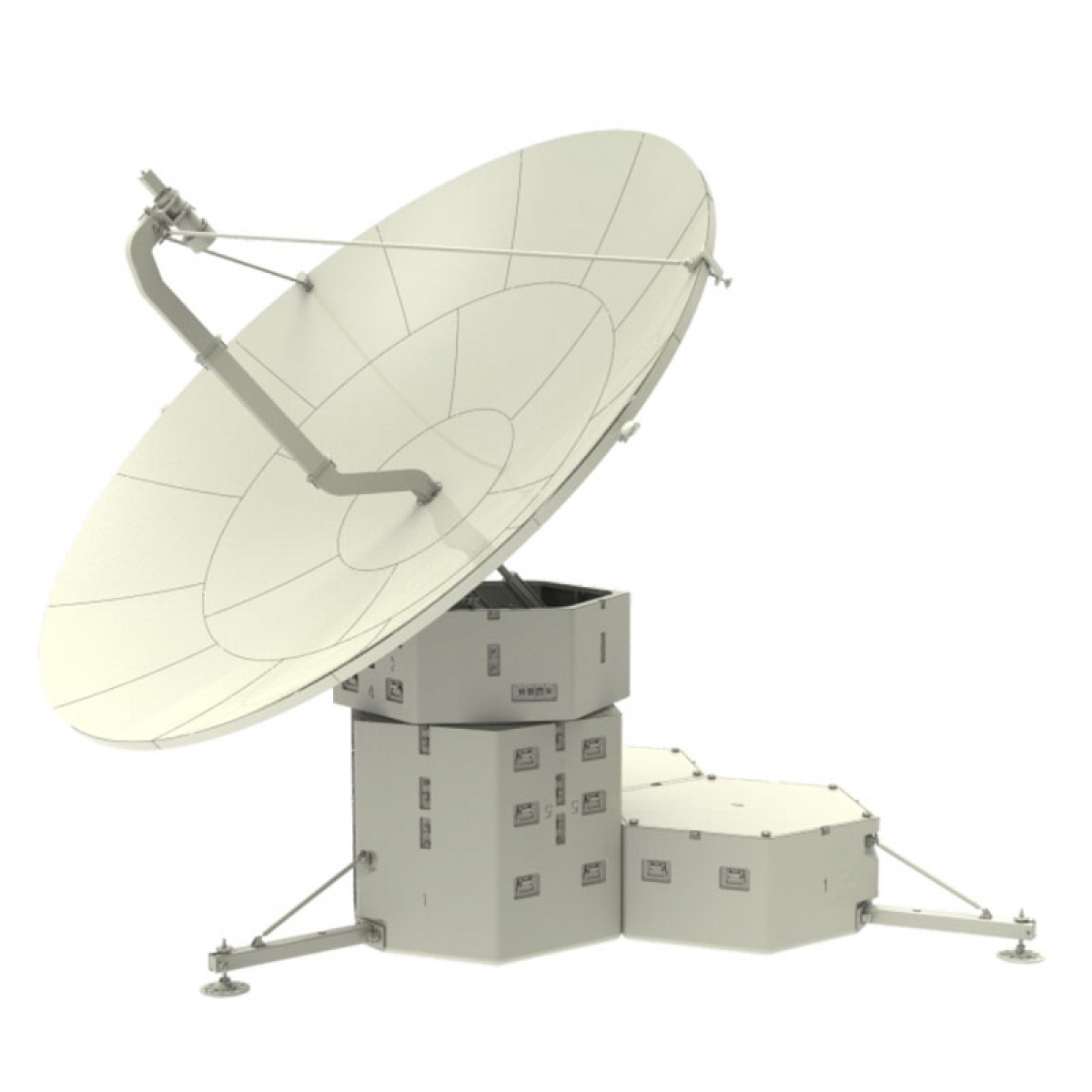

Antenna CategoryAutomatic TransportableAntenna Aperture 3.7mAntenna Type Feed ForwardPolarizationLinearFrequency (Rx) 3.40-4.20GHzFrequency (Tx) 5.85-6.725GHzPort isolation (Rx-Tx)≥ 85 dBPort isolation (Tx-Rx) ≥ 40 dBGain(Rx)≥40.76+20lg(f/3.80)dBiGain(Tx)≥45.16+20lg(f/6.30) dBiVSWR(Rx)≤1.5:1VSWR(Tx) ≤1.5:1Motion range (AZ) +180°(When EL is above 36°)Motion range (EL) 10°~90°Motion range (POL) ±90°AZ0.1~1°/sEL0.1~0.5°/sPOLInitial acquisition time≤3minBlockage recovery time≤1minPower capacity≤500WOperating Temperature-40°C ~ +60 °CStorage Temperature-55°C ~ +70 °CHumidity Requirement95%(20°C)Operating wind velocity13m/sSurvival wind velocity20m/sProtection grade/IP RatingIP65Power supply90~264VAC,47Hz~63Hzpower consumption≤350W(No power amplifier)MaterialCarbon FiberRemarksOptional Feed꞉ L / S; 1.00GHz-18.00GHz;18.00GHz-40.00GHz
