Product Parameters

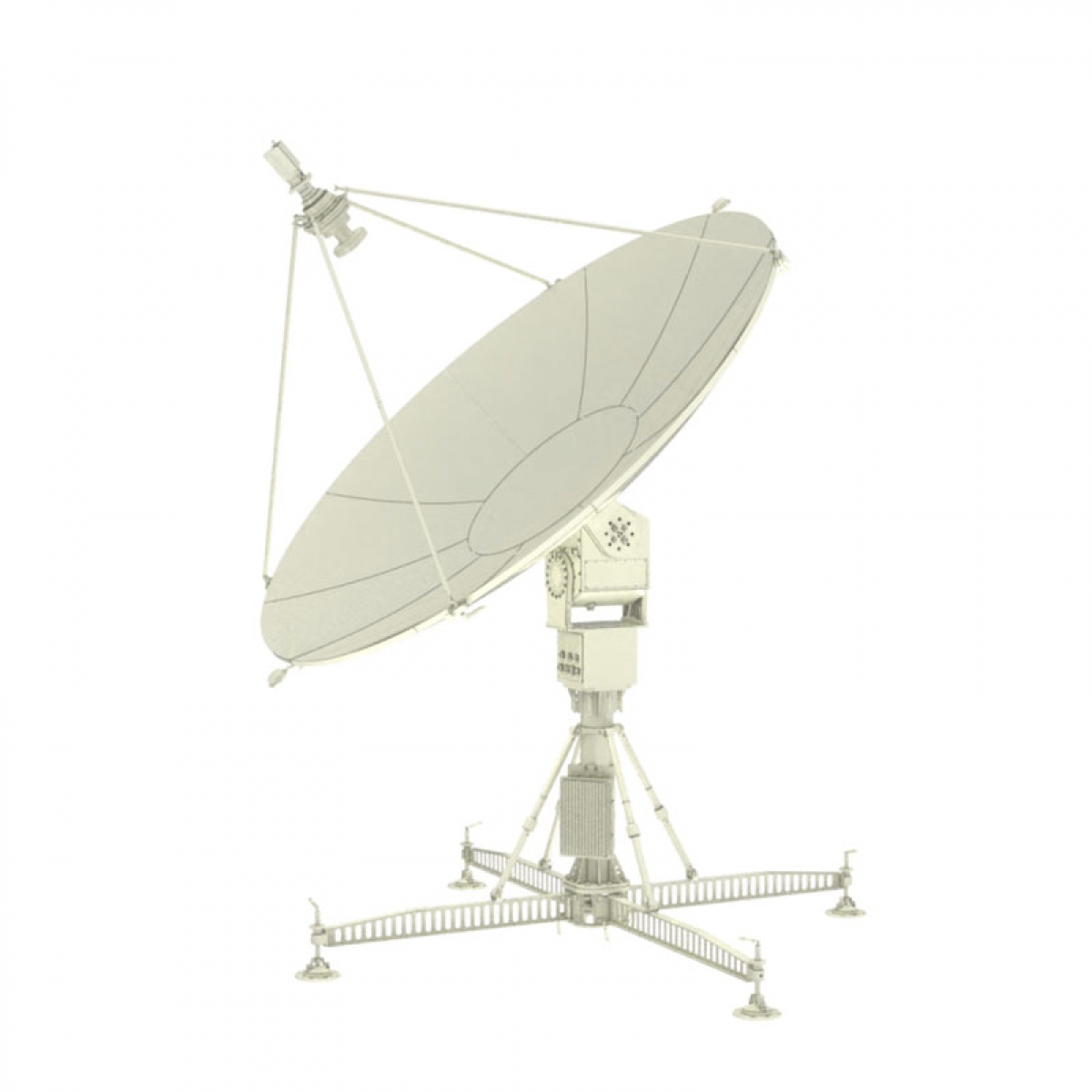

Antenna CategoryAutomatic LEO Tracking TransportableAntenna Aperture 2.4mAntenna Type Feed ForwardPolarizationCircularFrequency (Rx) 7.25-7.75GHzFrequency (Tx) 7.90-8.40GHzPort isolation (Rx-Tx)≥ 85 dBPort isolation (Tx-Rx) ≥ 40 dBGain(Rx)≥42.91+20lg(f/7.50)dBiGain(Tx)≥43.63+20lg(f/8.15)dBiVSWR(Rx)≤1.5:1VSWR(Tx) ≤1.5:1Motion range (AZ) X Axis:±85°Motion range (EL) Y Axis: ±85°Motion range (POL) AZX Axis:0.1~5°/sELY Axis:0.1~5°/sPOLInitial acquisition time≤3minBlockage recovery time≤1minPower capacity≤500WOperating Temperature-40°C ~ +60 °CStorage Temperature-55°C ~ +70 °CHumidity Requirement95%(20°C)Operating wind velocity13m/sSurvival wind velocity20m/sProtection grade/IP RatingIP65Power supply90~264VAC,47Hz~63Hzpower consumption≤350W(No power amplifier)MaterialCarbon FiberRemarks
