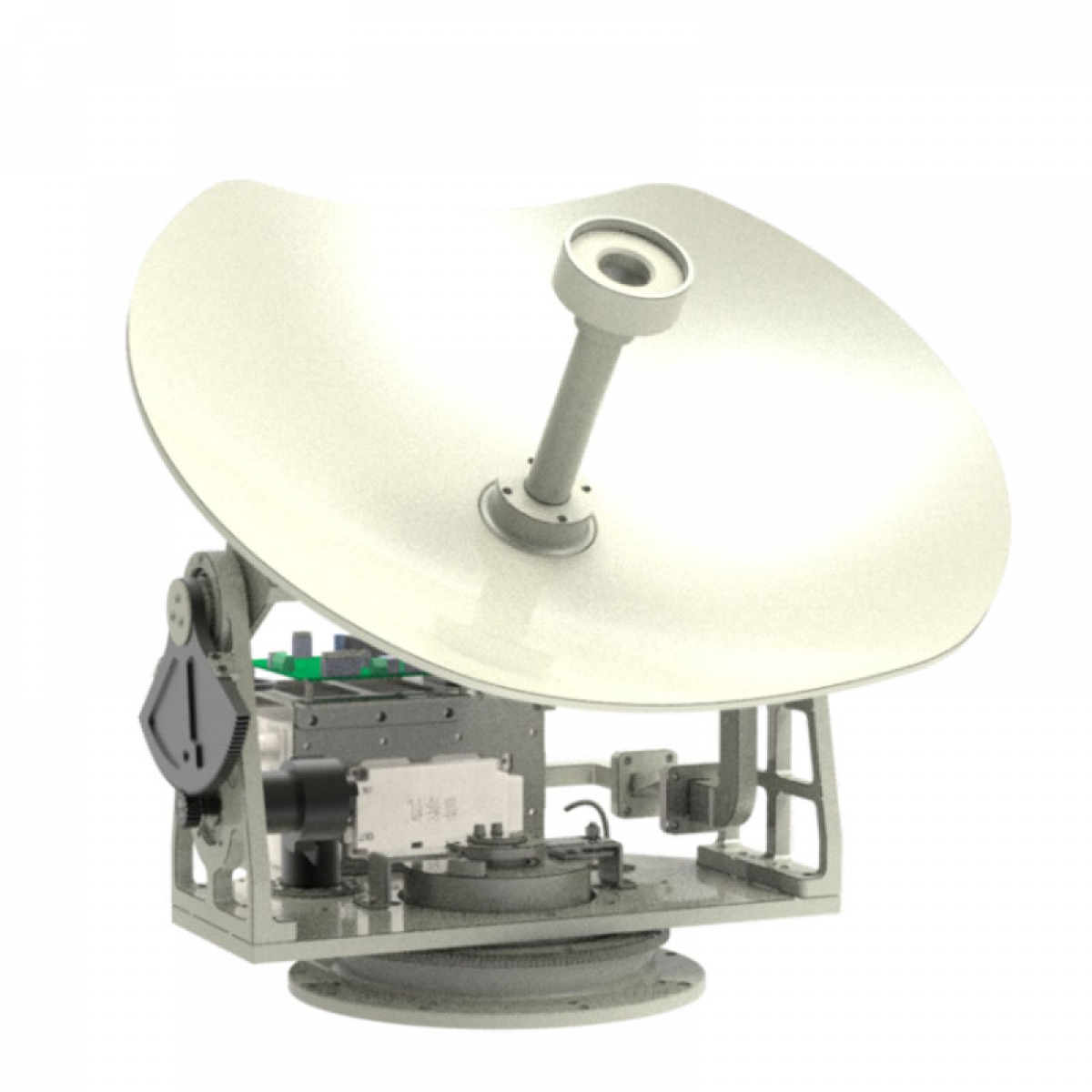

Product Parameters
Antenna CategoryAirborneAntenna Aperture 0.45mAntenna Type PolarizationCircularFrequency (Rx) 17.70-21.20GHzFrequency (Tx) 29.00-31.00GHzPort isolation (Rx-Tx)Port isolation (Tx-Rx) Gain(Rx)≥36.89+20lg(f/20.00)dBiGain(Tx)≥40.41+20lg(f/30.00)dBiVSWR(Rx)≤1.5:1VSWR(Tx) ≤1.5:1Motion range (AZ) 360° Continuous Unlimited RotationMotion range (EL) 0°~90°Motion range (POL) ±90°AZELPOLInitial acquisition timeBlockage recovery timePower capacityOperating Temperature-40°C ~ +60 °CStorage Temperature-55°C ~ +70 °CHumidity RequirementOperating wind velocitySurvival wind velocityProtection grade/IP RatingIP65Power supply90~264VAC,47Hz~63Hzpower consumptionMaterialCarbon FiberRemarksTime (sec)꞉ Shadow blockage ≤ 5 s within 10 minutes
