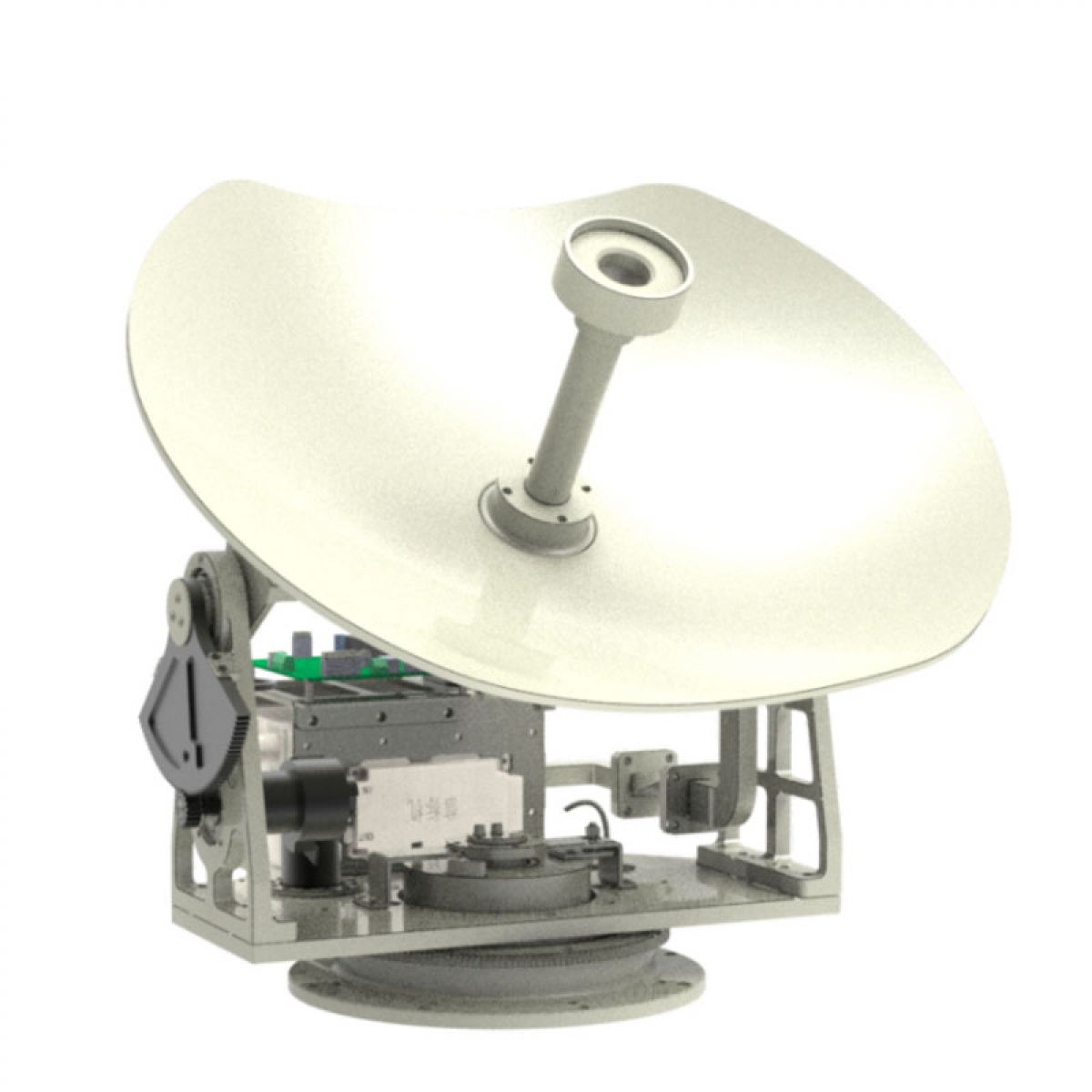

Product Parameters
Antenna CategoryAirborneAntenna Aperture 0.45mAntenna Type PolarizationLinearFrequency (Rx) 10.95-12.75GHzFrequency (Tx) 13.75-14.50GHzPort isolation (Rx-Tx)Port isolation (Tx-Rx) Gain(Rx)≥32.80+20lg(f/12.25)dBiGain(Tx)≥33.90+20lg(f/14.25)dBiVSWR(Rx)≤1.5:1VSWR(Tx) ≤1.5:1Motion range (AZ) 360° Continuous Unlimited RotationMotion range (EL) 0°~90°Motion range (POL) ±90°AZELPOLInitial acquisition timeBlockage recovery timePower capacityOperating Temperature-40°C ~ +60 °CStorage Temperature-55°C ~ +70 °CHumidity RequirementOperating wind velocitySurvival wind velocityProtection grade/IP RatingIP65Power supply90~264VAC,47Hz~63Hzpower consumptionMaterialCarbon FiberRemarksTime (sec)꞉ Shadow blockage ≤ 5 s within 10 minutes
