General description
The function of monopulse tracking receiver is to complete signal amplification, sampling, AGC control, Doppler presetting, frequency guidance, anti-side band error lock, carrier acquisition and tracking. Monopulse tracking receiver mainly includes IF receiving unit and monitoring processing unit. It can accept local or remote control, and can also display the device status locally and report to the remote monitoring device. The test computer can set and monitor the device through the network interface. The receiver is widely used in the tracking subsystem of antenna and coordinating the servo to complete the automatic tracking of the target.
Features
It can complete signal amplification, sampling,
AGC control, Doppler presetting, frequency guidance,
anti-side band error lock, carrier acquisition and tracking;
It can accept local or remote control,
Display the device status locally and report to the remote monitoring Technical parameters

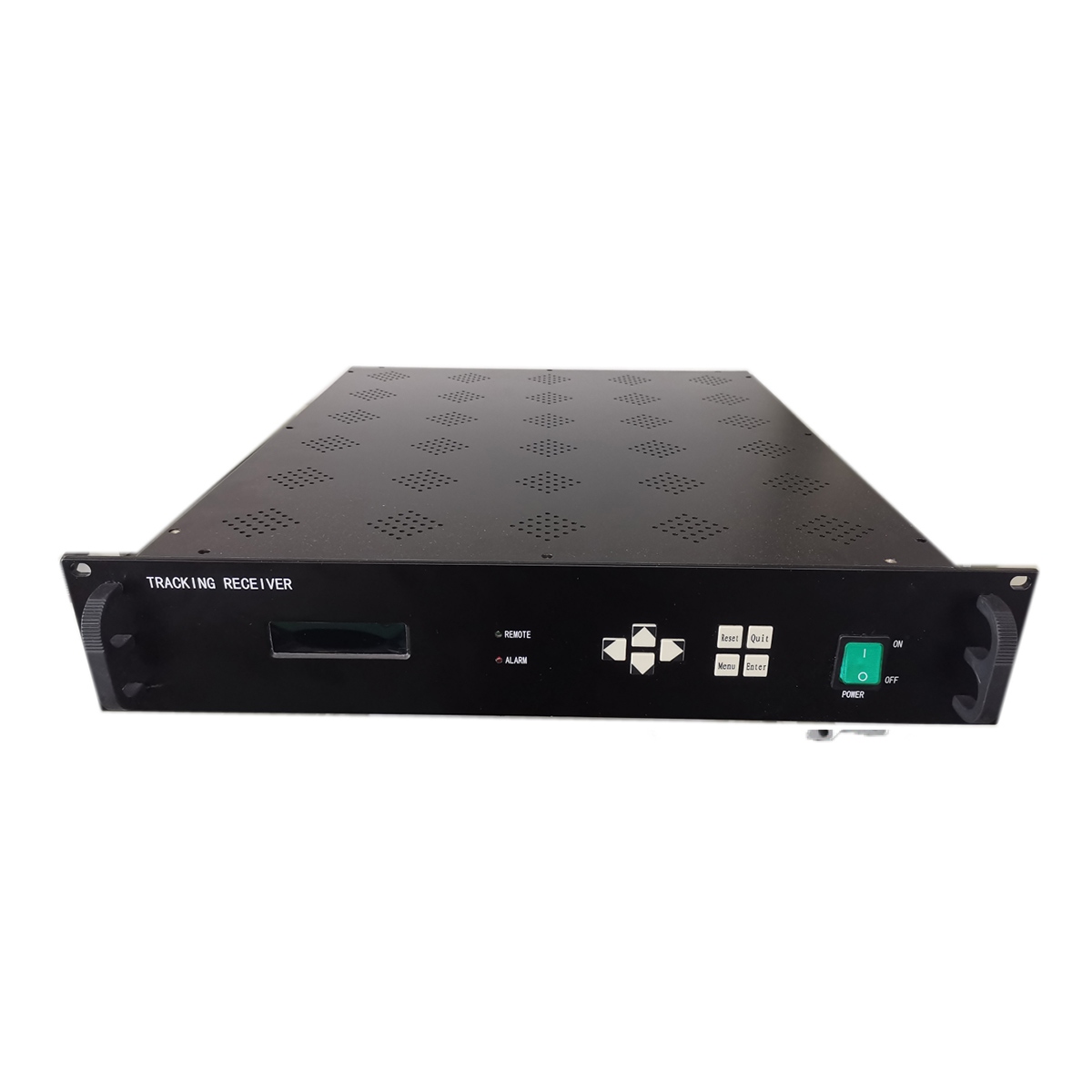

Name	Monopulse tracking receiver
Type	NBB-J240M1-01
Input bandwidth central frequency	70MHz
Signal tracking mode	Single carrier or residual carrier, wide band data
Input level	Single carrier: -50dBm ~ 0dBm Wide band: -30dBm ~ 0dBm
Information Rate per Carrier after Decoding	≤250Mbps
Doppler acquisition frequency range	±500KHz
Acquisition threshold	S/N ≤ 6dB
Tracking threshold	S/N ≤ 9dB
AGC dynamic range	≥50dBm
AGC level range	0 ~ 5V(±10%)
AZ, EL level output	-5V ~ ＋5V(±10%)
Acquisition time	≤ 1s
Tracking accuracy	≤ 1/5half power beam width(under the tracking threshold, achieve in coordination with antenna)
Service temperature	-20°C ~ +50°C
Storage temperature	-50°C ~ +70°C
